Evolution¶

After the initial population is created and evaluated, ESO iterates a fixed number of generations. Each generation produces a new population through three genetic operators applied to parents selected by tournament. The previous best chromosome is preserved across generations.

flowchart TB
    A[Population at generation N] --> B[Train each chromosome's CNN]
    B --> C[Compute fitness vs. baseline]
    C --> D[Tournament selection of parents]
    D --> E[Reproduction · Mutation · Crossover]
    E --> F[New population at generation N+1]
    F --> A
    C -. track best so far .-> G[ESO chromosome]

Parent selection¶

Selection uses tournament selection with size \(t\), defined in SelectionOperatorConfig.tournament_size.

1. Sample t chromosomes uniformly from the current population, with replacement.
2. Return the chromosome with the highest fitness from the sample.

Each call returns one parent. Operators that need two parents (crossover) call the procedure twice. Larger \(t\) increases selection pressure.

Operators¶

Three operators are applied with user-defined rates. The paper uses the configuration reproduction = 0.1, mutation = 0.3, crossover = 0.6. The default rates in GeneticOperatorConfig match this.

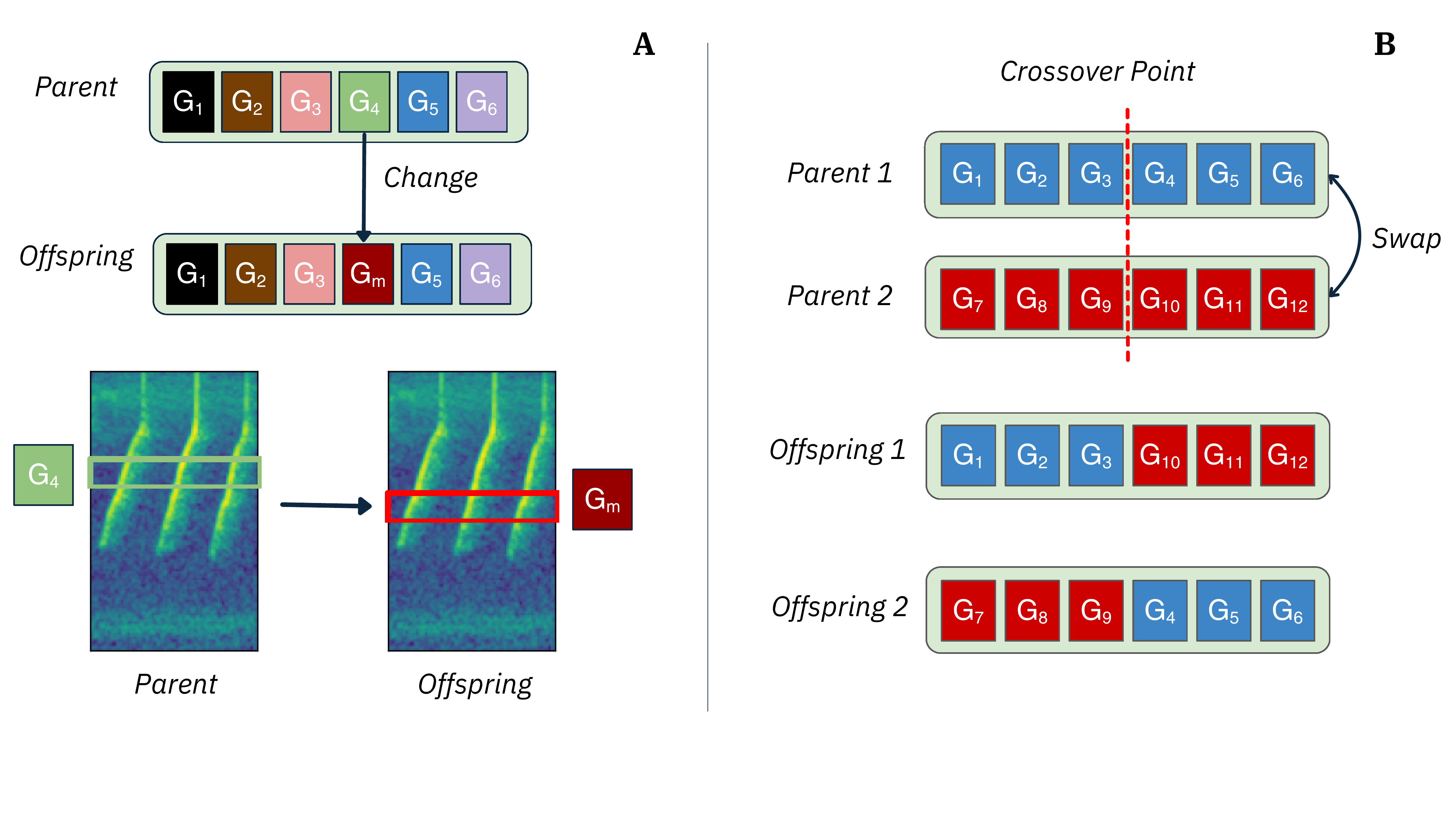

Mutation and crossover schematics — (A) Mutation modifies the position, the height, or both of a randomly chosen gene of the parent chromosome. (B) Crossover swaps a randomly chosen range of genes between two parents. After Figure 3 in Çakır et al.

Reproduction¶

Asexual. One parent is selected and copied unchanged into the next generation. This preserves good solutions.

Mutation¶

Asexual. One parent is selected. One gene inside that chromosome is chosen at random. Then one of three mutation types is applied uniformly at random.

Type	Update
Position	\(P_k' = P_k + \delta P\), subject to \(0 \le P_k' + h_k \le S_h\).
Height	\(h_k' = h_k + \delta h\), subject to \(0 \le P_k + h_k' \le S_h\).
Both	Update both, subject to \(0 \le P_k' + h_k' \le S_h\).

The deltas are bounded by mutation_position_range and mutation_height_range in GeneticOperatorConfig. Gene-level constraints from GeneConfig are respected. Fixed dimensions are not mutated.

Crossover¶

Sexual. Two parents are selected. Let \(l = \min(|\text{Parent}_1|, |\text{Parent}_2|)\) be the shorter chromosome length. A start index in \([0, l-1]\) and an end index in \([\text{start}+1, l]\) are drawn uniformly. Genes between the start and end indices are swapped between the two parents. Two offspring are returned.

If the parents have different numbers of genes, the crossover range is limited to the length of the shorter chromosome. Genes outside the range are inherited from each respective parent.

Termination¶

The loop terminates when algorithm.max_generations generations have been completed. There is no early stopping in the current implementation.

After termination, the best chromosome across all generations is returned. It is the chromosome with the highest fitness value seen at any point during the run, not necessarily the best chromosome of the final generation.

Hyperparameters that matter¶

Parameter	Field	Effect
Generations	`algorithm.max_generations`	More generations explore more of the search space at proportionally more compute cost. The paper uses 20.
Population size	`population.pop_size`	Larger populations explore more per generation. The paper uses 300.
Tournament size	`selection_operator.tournament_size`	Selection pressure.
Mutation rate	`genetic_operator.mutation_rate`	Probability that mutation produces the next individual.
Crossover rate	`genetic_operator.crossover_rate`	Probability that crossover produces the next pair.
Reproduction rate	`genetic_operator.reproduction_rate`	Probability that a parent is copied unchanged.
Fitness weights	`chromosome.lambda_1`, `chromosome.lambda_2`	Trade-off between F1 and parameter count.

All values are settable in the configuration. See Configuration.
